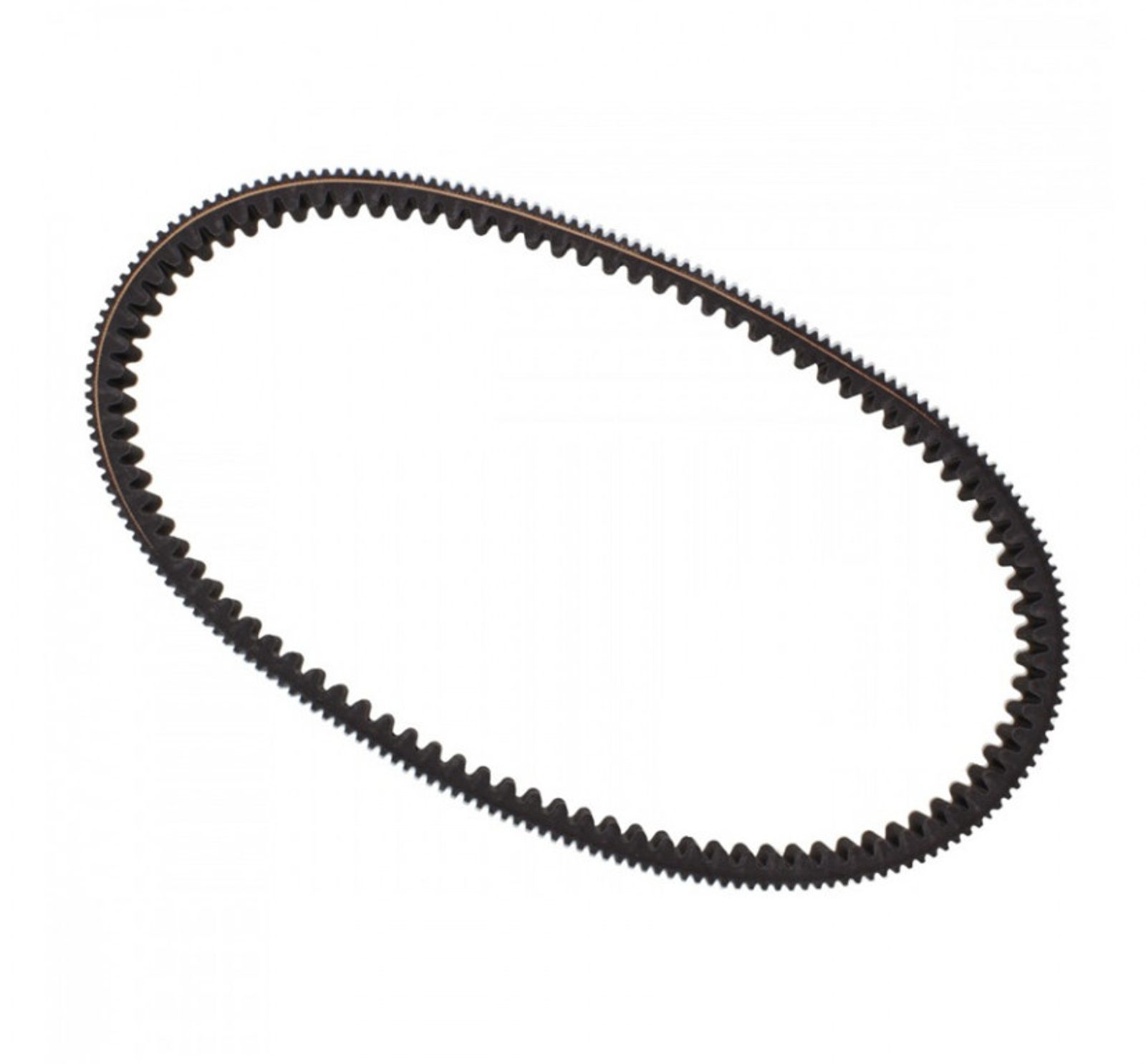

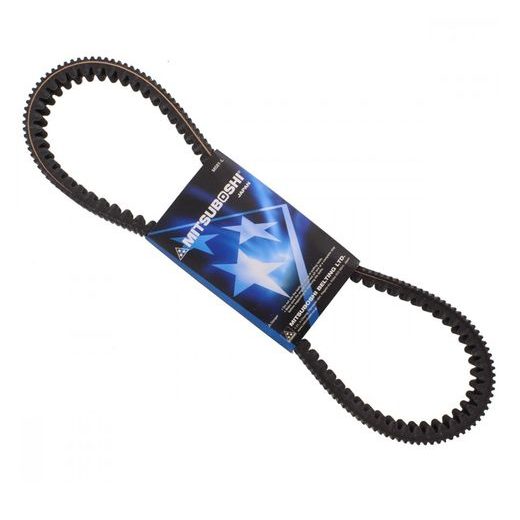

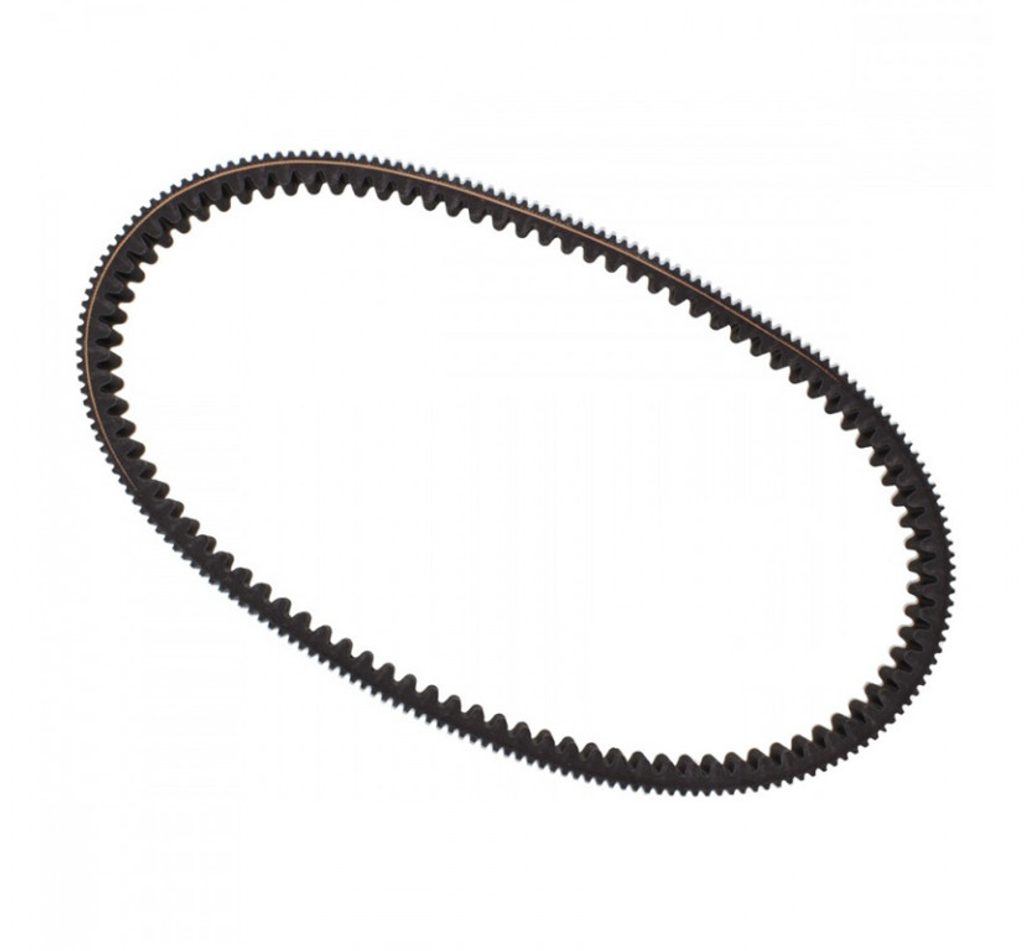

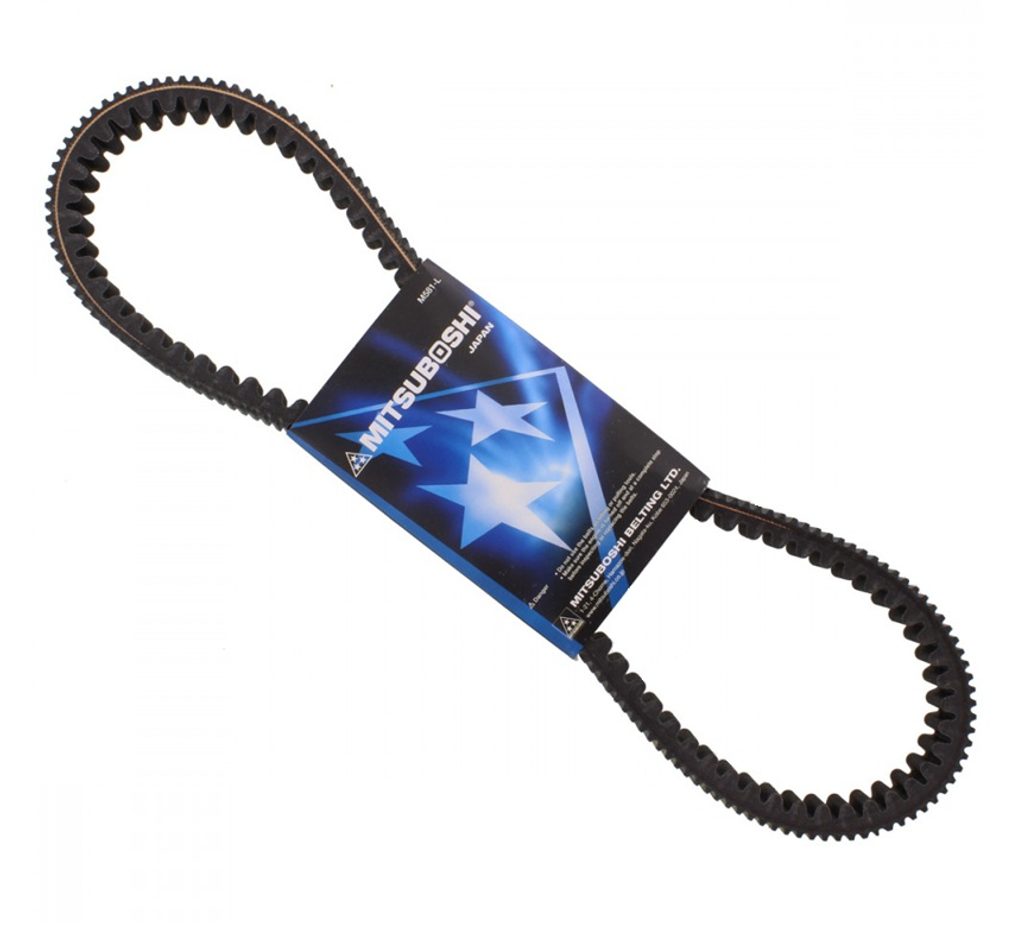

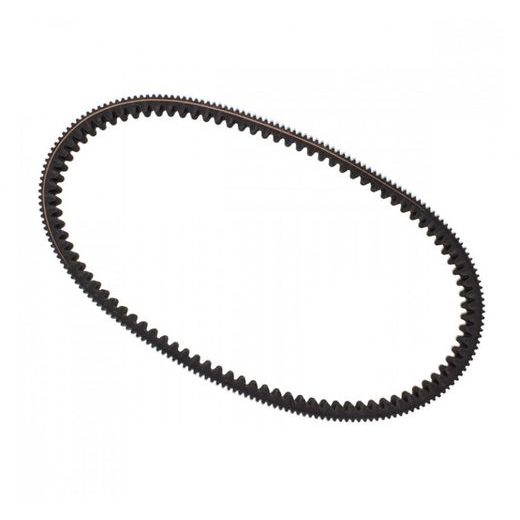

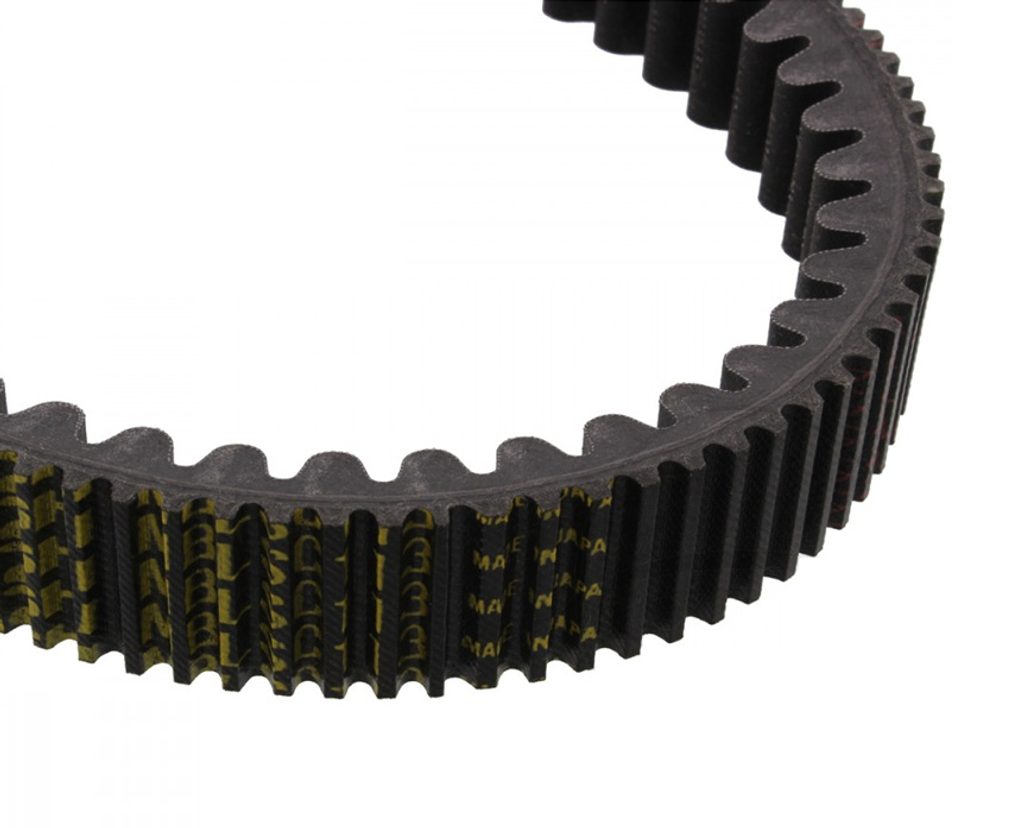

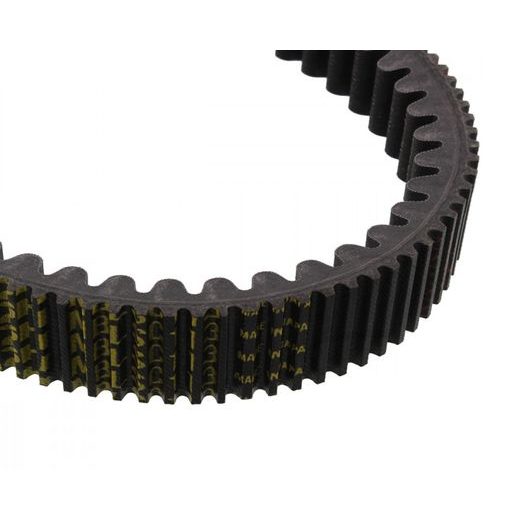

Piedziņas siksna MITSUBOSHI

Drive belts - a perfect fit for every application

Drive belts differ not only in length and width, but also in height, angle, choice of material and structure. These characteristics are decisive for the respective area of application. Each belt is precisely matched to a specific vehicle and a specific transmission ratio. Please therefore rely on the belt designation assigned by the manufacturer or dealer. This is the only way to ensure that the belt fits perfectly and works reliably.

Technical explanation
When selecting a variomatic drive belt, not only width × length plays a role, but also

- the angle of the belt profile

- the thickness (height of the belt)

- the height and shape of the teeth

Even small differences can be decisive.
Example: Two belts can have identical length and width, but differ in angle by 4 degrees. These belts are not compatible because the belt does not fit perfectly. This leads to increased wear, loss of power and impaired function.

The use of different materials and structures responds specifically to different requirements:

- higher heat resistance

- better slip resistance

- Optimized lateral pressure stability

- longer service life

Differences in measuring methods
Belt manufacturers often measure differently, so the dimensions also vary:

- Inner length - measured on the inside of the belt

- Tension cord - load-bearing element that ensures dimensional stability and prevents the belt from stretching

- Outer length - measured around the outer circumference of the belt

- Reference or center line - measured approximately in the middle of the belt thickness

These differences often lead to confusion among customers, especially when they have to choose between different belts with different specifications. Customers often measure their installed belts and are disillusioned to find that the specified dimensions do not match. Many manufacturers therefore do not specify the dimensions at all.

But what to do if no belt is specified for a vehicle or an end user only has the dimensions?

Our quality standards
We have precisely measured and documented every single belt. We are aware that many customers can only measure the width and outer diameter when replacing a belt. So that you can still make the right choice, we provide these dimensions transparently.

This allows you to narrow down your search and find the belt that comes closest to your old model - even if the original designation is no longer legible.

Note: The dimensions given correspond to the outer diameter and width.
